VZ Lifter Specifications

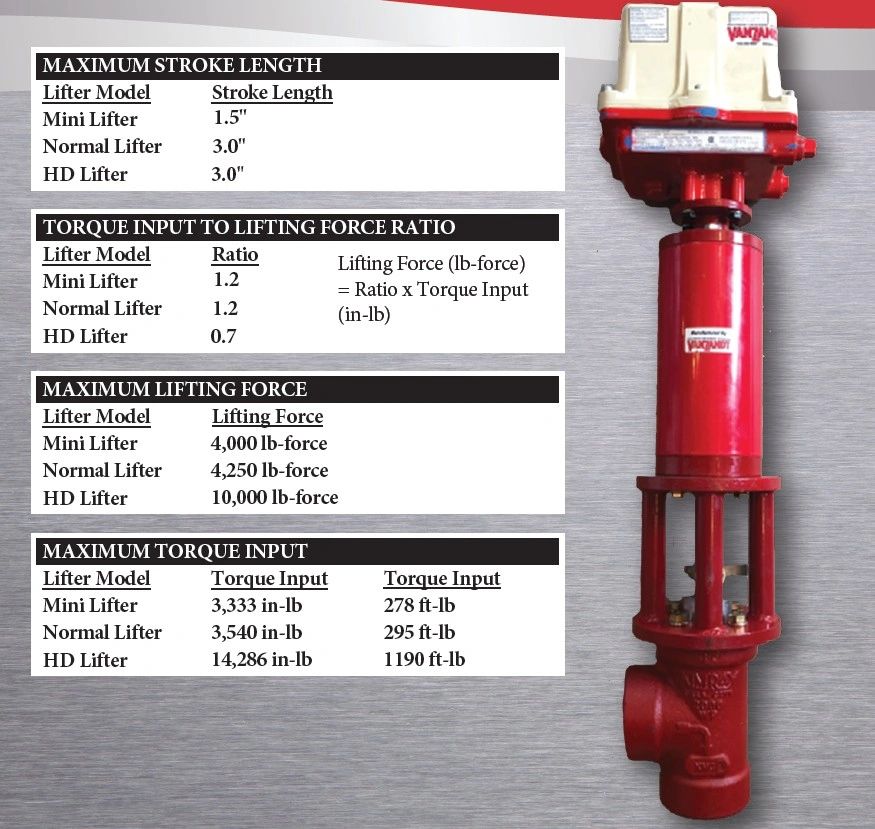

Red industrial lifter with technical specifications for stroke length, torque, and lifting force.

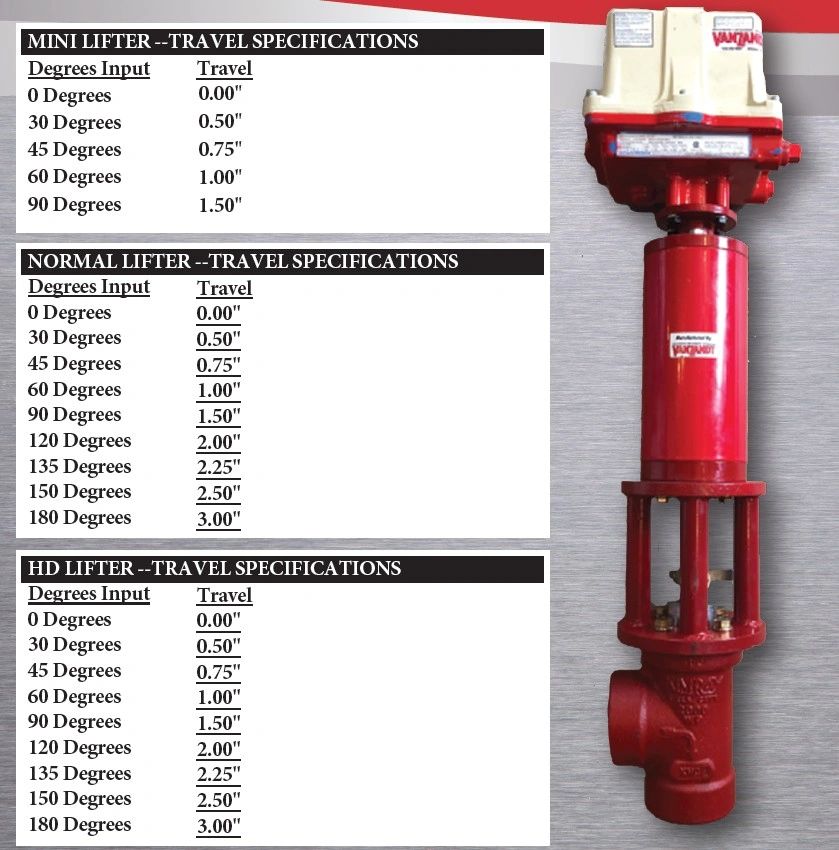

Red industrial valve lifter with travel specifications for mini, normal, and HD lifters.

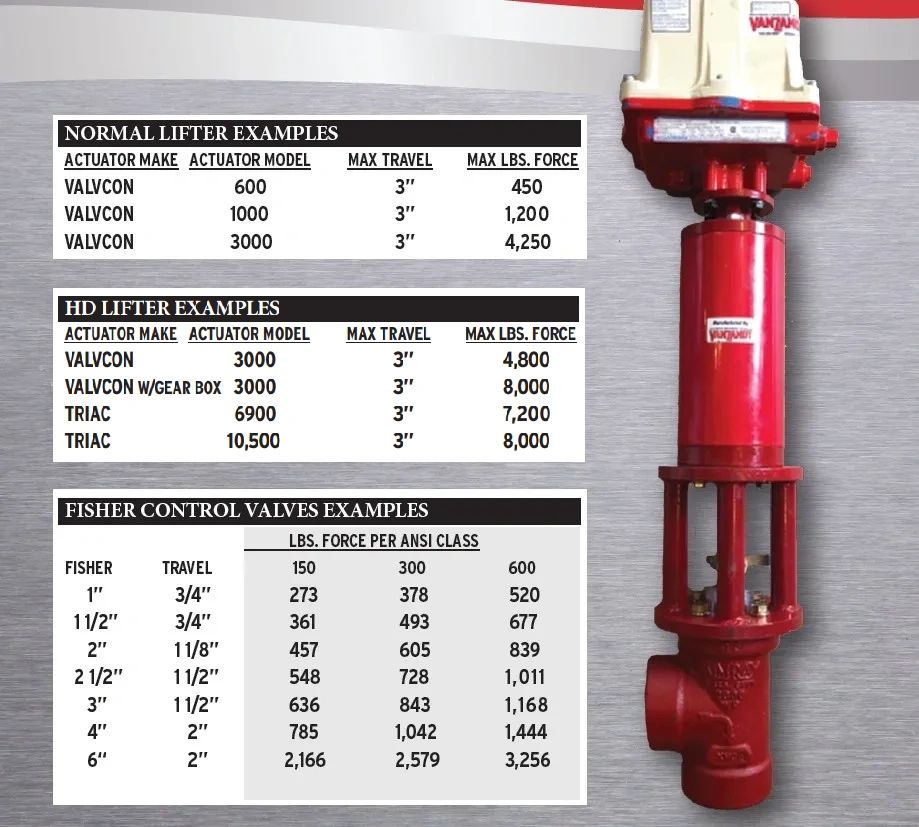

Red industrial valve actuator with lifter and control valve force examples chart.

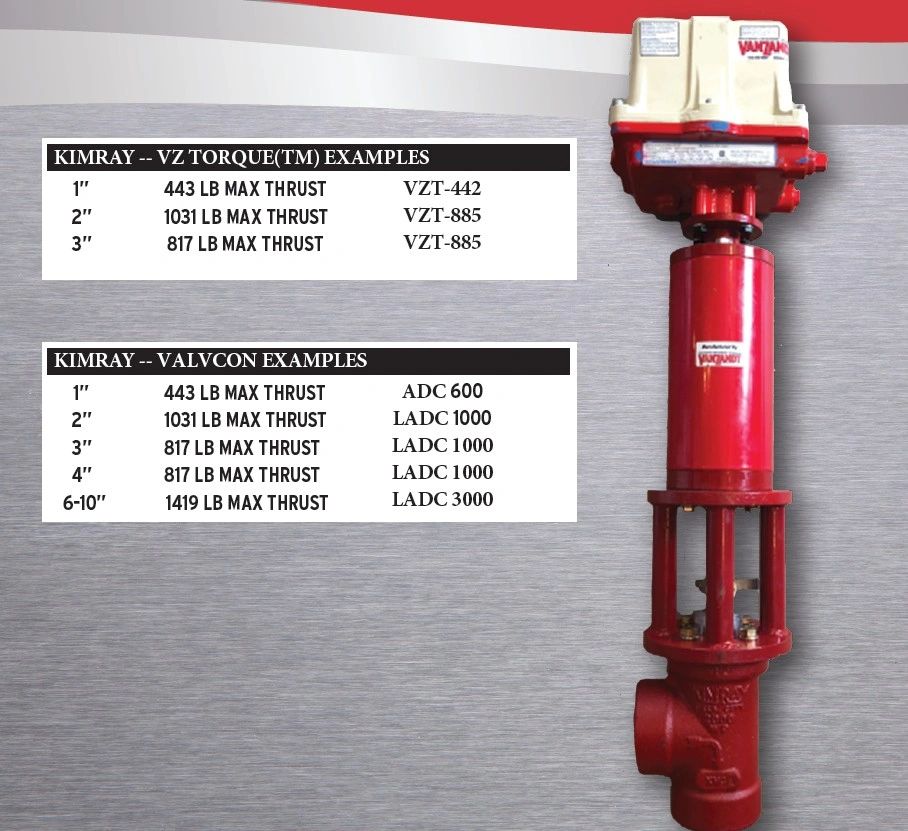

Red industrial valve actuator with Kimray torque and valve examples listed.

Our patented VZ Lifter™ allows a rotary actuator to operate a linear valve. This lowers costs, provides flexibility for actuator brands, and simplifies operations and maintenance. All lifters are manufactured in our USA machine shops using CNC machines, top quality tooling, and an experienced team of machinists.
